Pickling & Passivation

Pickling & Passivation is the removal of any high temperature scale and any adjacent low chromium layer of metal from the surface of stainless steel by chemical means.

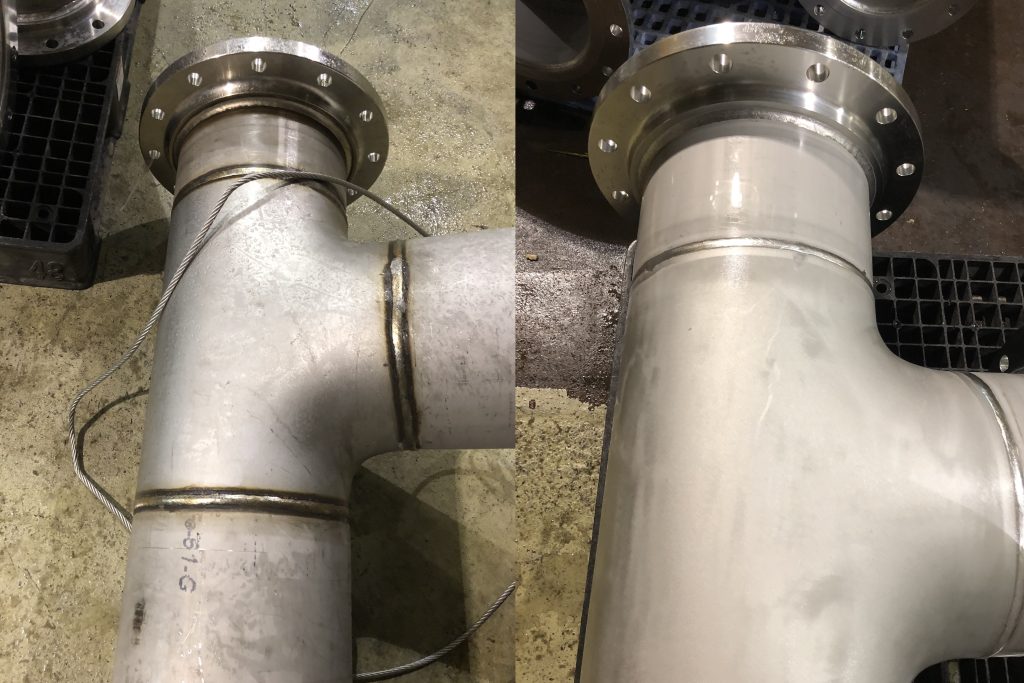

Example of good post-weld practice Where the steel has been heated by welding, heat treatments or other means, to the point where a coloured oxide layer can be seen, there is a chromium depleted layer on the surface of the steel underneath the oxide layer. The lower chromium content gives lower corrosion resistance. To restore the best corrosion resistant performance, the damaged metal layer must be removed, exposing a fully alloyed stainless steel surface. Mechanical removal may leave abrasive or other particles embedded (interfering with corrosion performance) or may be impractical, so chemical means are usually employed.

Procedures incorporating pickling solutions of nitric (HNO3) and hydrofluoric (HF) acids remove the scale and the underlying chromium depleted layer and restore the corrosion resistance. Pickling solutions also remove contaminants such as ferrous and ferric oxide particles. Pickling solutions other than mixtures of nitric and hydrofluoric acids exist and can be used for specialized applications.

SHOP CAPABILITIES:

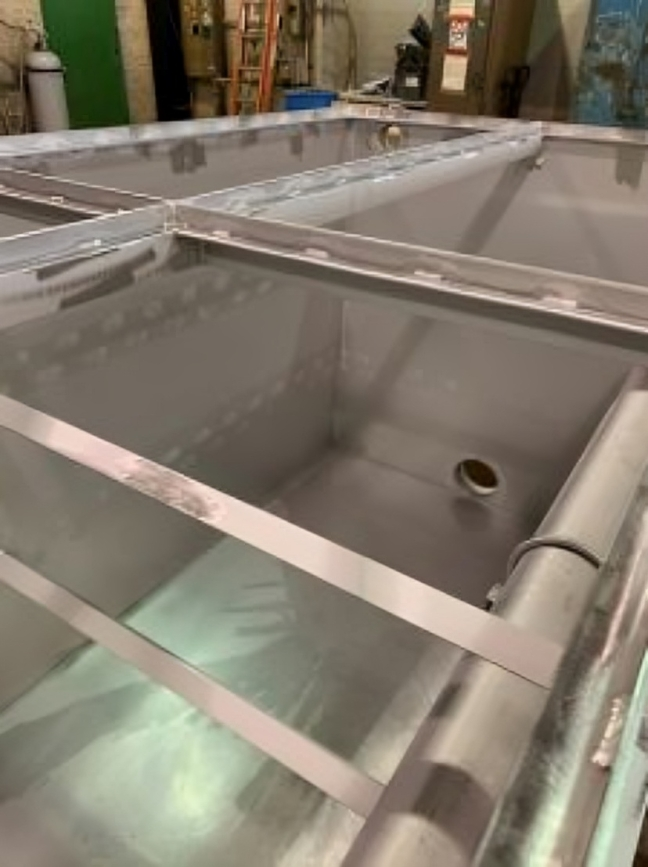

• Numerous acid + degreasing tanks. 2 tanks being 45 feet long
• Full MOE certified and inspected Clean Air Scrubber system
• Ovens for Baking and Curing
• 3 tonne Overhead Crane
